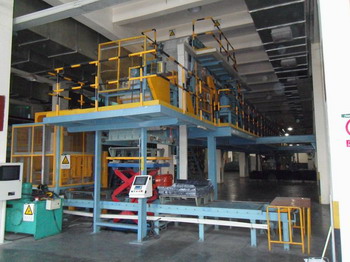

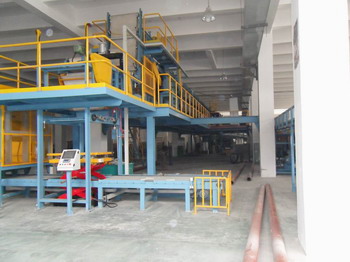

膠片冷卻聯動生產線
設備用途 Equipment use：
通過膠片冷卻聯動線的浸漬、掛膠風冷、擺放疊片給下道工序。
It moves through the batch off line, It includes dipping, fan cooling ,packer stacker and delivers to next process .
設備特點：Equipment characteristics
接取輸送機、打標裝置、浸漬冷卻裝置、膠片掛膠輸送裝置、一樓擺膠疊片裝置、二樓提升輸送機、二樓擺膠疊片裝置、切膠裝置等組成。

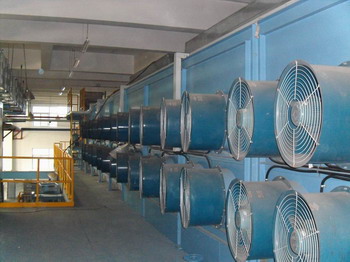

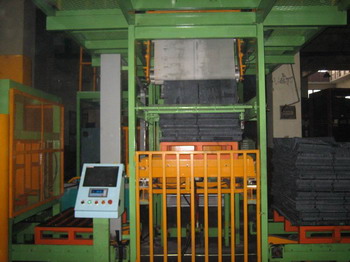

It consists of take-up conveying machine, printing system, dipping , fan cooling , first floor packer stacker , liftting equipment to second floor , and packer stacker on second floor ,and cutting unit .
|
主要技術參數Main technical parameters |
|
序號 № |
膠片寬度
Rubber tablet sheet width |
膠片厚度
Rubber tablet sheet thickness |
生產線速度
Production line speed |
|
1 |
Max.900mm |
Max.12mm |
Max.40mm/min |
|
2 |
膠片貯藏溫度
Rubber sheet reserve temperature |
一次膠料重量
One time rubber material weight |
擺放長度精度
Deposite length precision |
|
3 |
Max.43℃ |
250-350 公斤/批250-350 kg/batch |
±50mm |
|
4 |
膠片縱裁寬度
Rubber sheet longitudinal width |
托盤進出擺膠片方式
Packer stacker method |
膠片采樣方式
Rubber sheet sampling method |
|
5 |
80mm-100mm |
自動
Automatic |
自動
Automatic |
