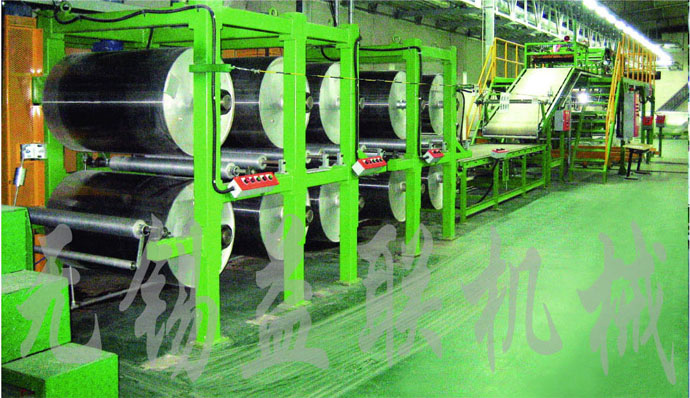

半鋼內襯層擠出聯動生產線
設備用途 Equipment use
由四輥壓延機二層內襯層復合或貼膠片及薄膠用于轎車子午胎生產。
Use 4-roller rolling mill calernder to make compound two layers of liner or adhere rubber tablet sheet or thin rubber to use it in the production of radial tyre of car.
設備特點Equipment characteristics:
Ф450×1250四輥壓延機，Ф150銷釘式冷喂料擠出機、接取、返回輸送機、冷卻輥裝置、手動卷取輸送機裝置、連續裁斷裝置、臺車或工字大卷裝置組成。
It consists of Ф450×1250 4-roller calernder, Ф150 pin type cold feeding extruder ,collecting & returning conveying machine, cooling roller unit, manual wind-up and conveying machine, continuous cutting machine, trolley or bobbin big batch unit.
|
主要技術參數Main technical parameters |
|
序號
№ |
壓延膠片寬度范圍
Calender rubber sheet width range |
壓延單層膠片厚度
Rolled single layer rubber sheet thickness |
雙層復合膠片厚度
Dual layer laminate rubber sheet thickness |
|
1 |
280mm-700mm |
0.2mm-2.5mm |
0.5mm-3mm |
|
2 |
雙層復合厚度公差
Dual layer laminate thickness tolerance |
兩層膠片復合對中公差
Dual layer laminate centering tolerance |
修邊后膠寬度誤差
Rubber width tolerance after edge trimming |
|
3 |
±0.1mm |
≤±1mm |
≤±1mm |
|
4 |
生產線寬度Production line width |
生產線速度
Production line speed |
冷卻水最高溫度
Maximum temperature of the cooling water |
|
5 |
1000mm |
Max35m/min |
Max.25℃ |
